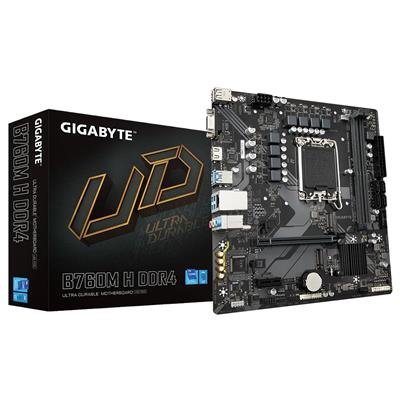

GIGABYTE B760M H DDR4 LGA1700 Micro-ATX Motherboard

Description

Overview

The GIGABYTE B760M H DDR4 is a compact micro‑ATX motherboard built around the Intel B760 chipset for LGA1700 processors. It’s aimed at users who want a small, cost‑effective platform that supports current Intel 12th, 13th and 14th Generation CPUs while keeping DDR4 memory and modern PCIe 4.0 storage options.

Key features

• Socket LGA1700 — compatible with 12th, 13th and 14th Gen Intel Core, Pentium Gold and Celeron processors (see Gigabyte CPU Support List for specifics).
• Memory — 2 x DDR4 DIMM slots, dual‑channel, up to 64GB (supports XMP and common DDR4 speeds such as 3200/3000/2933 MT/s).
• Storage — 2 x M.2 (Socket 3, M key, 2280) with PCIe 4.0 x4 support and 4 x SATA 6Gb/s ports; RAID 0/1/5/10 supported for SATA devices.
• Expansion — 1 x PCIe 4.0 x16 slot and 1 x PCIe 3.0 x1 slot; EZ‑Latch PCIe x16 release design.
• Rear I/O and connectivity — HDMI (up to 4K@60), D‑Sub, 4 x USB 3.2 Gen1 (rear), 2 x USB 2.0 (rear), Realtek Gigabit LAN, 3 x audio jacks (Realtek HD codec).
• Cooling and monitoring — GIGABYTE Smart Fan 6 with multiple temperature sensors and hybrid fan headers.
• Form factor and BIOS — Micro‑ATX 23.0cm x 21.5cm; AMI UEFI BIOS (128 Mbit) with Q‑Flash support.

Who this suits

• Users building compact desktops or office PCs who want LGA1700 CPU support but plan to keep DDR4 memory.
• Systems requiring PCIe 4.0 NVMe storage in a small‑form factor board.
• Basic gaming or productivity builds where onboard Gigabit Ethernet, HDMI output and a small footprint are priorities.
