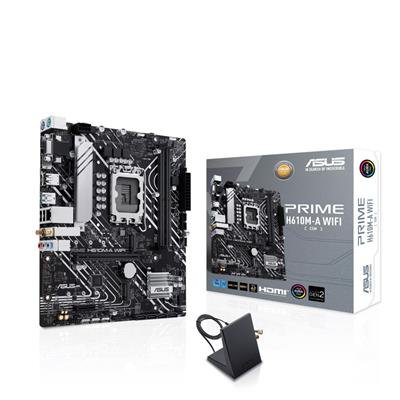

ASUS PRIME H610M-A WIFI D5 LGA1700 mATX Motherboard (DDR5)

Description

Overview

The ASUS PRIME H610M-A WIFI D5 is a compact micro‑ATX motherboard for Intel LGA1700 systems that need DDR5 memory and built‑in wireless. It supports 12th, 13th and 14th‑generation Intel Core processors (see ASUS CPU support list for exact CPU/BIOS requirements) and provides a balanced feature set for everyday desktop, home office and small‑form‑factor gaming builds.

Key features

• Socket LGA1700 for Intel 12th–14th Gen processors with Intel H610 chipset.
• Memory: 2 x DDR5 DIMM slots (non‑ECC), up to 96GB, supported speeds to DDR5‑5600 with XMP.
• Graphics outputs: DisplayPort, HDMI (4K@60Hz) and VGA onboard.
• Expansion: 1 x PCIe 4.0 x16 slot and 1 x PCIe 3.0 x1 slot.
• Storage: 2 x M.2 (Key M) sockets (M.2_1 PCIe 3.0 x4, M.2_2 PCIe 3.0 x2) plus 4 x SATA 6Gb/s ports.
• Networking: Intel 1Gb Ethernet and integrated Wi‑Fi 5 (802.11ac) with external antennas; Bluetooth v5.0.
• USB: Rear: 1 x USB 3.2 Gen 2 (10G) Type‑A and multiple USB 2.0 ports. Front headers include USB 3.2 Gen 1 (Type‑C support via internal header).
• Audio: Realtek 7.1 high‑definition audio codec with dedicated PCB layers and premium capacitors.

What’s in the box

• ASUS PRIME H610M-A WIFI motherboard
• 2 x SATA 6Gb/s cables
• Wi‑Fi antenna (movable)
• I/O shield
• M.2 screw pack and user guide

This description is based on the official ASUS product specification and user manual. If you intend to use a specific CPU or memory kit, check ASUS’s online CPU and memory support lists for compatibility and any BIOS updates required before installation.
