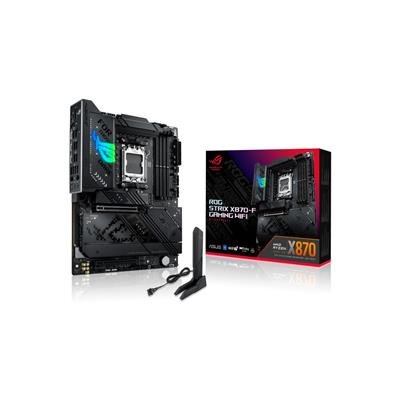

ASUS ROG Strix X870‑F Gaming WiFi AM5 Motherboard

Description

Overview

The ASUS ROG Strix X870‑F Gaming WiFi is a full‑feature ATX motherboard for AMD’s AM5 platform. Based on the AMD X870 chipset it targets gamers and creators who want PCIe 5.0 support (with compatible Ryzen processors), advanced networking and multiple high‑speed M.2 slots while using DDR5 memory.

Key features

• Socket AM5 — supports AMD Ryzen 9000, 8000 and 7000 series desktop processors (refer to ASUS CPU support list).
• Memory — 4 x DDR5 DIMM slots, up to 192GB (supports EXPO/AEMP and OC profiles).
• Expansion & storage — PCIe 5.0 x16 (with Ryzen 9000); four M.2 slots (two PCIe 5.0-capable with supported CPUs plus two PCIe 4.0 slots) and 2 x SATA 6Gb/s ports.
• Connectivity — Intel 2.5Gb Ethernet and 2×2 Wi‑Fi 7 (802.11be) with Bluetooth; dual USB4 (40Gbps) Type‑C on the rear plus multiple USB 10Gbps/5Gbps ports.
• Audio — ROG SupremeFX 7.1 HD audio (ALC4080) with Savitech headphone amp and optical S/PDIF out.

Notes

• Wi‑Fi 7 features and full bandwidth may require Windows 11 24H2 or later as noted by ASUS.
• Check ASUS support pages for the latest CPU and memory compatibility lists and BIOS updates before building.
