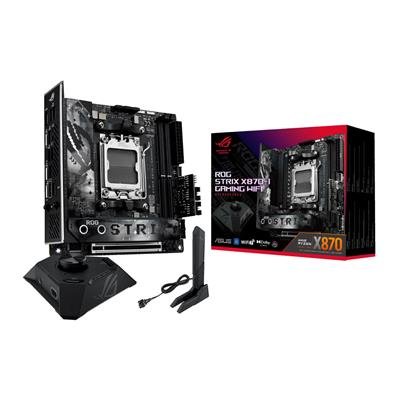

ASUS ROG STRIX X870-I GAMING WIFI (AM5, Mini-ITX)

Description

Overview

The ASUS ROG STRIX X870‑I GAMING WIFI is a feature‑packed AM5 Mini‑ITX motherboard that brings high‑end AM5 platform connectivity to compact builds. It combines a robust 10+2+1 power solution and advanced cooling with modern I/O — including dual USB4 ports, PCIe 5.0 graphics support (where supported by the CPU) and Wi‑Fi 7 — making it suitable for SFF gaming and content‑creation systems.

Key features

• Socket: AMD AM5 for Ryzen™ 9000 / 8000 / 7000 desktop processors (see ASUS CPU support list).
• Chipset: AMD X870 on a Mini‑ITX 170 x 170 mm board.
• Memory: 2 x DDR5 DIMM slots, dual‑channel, max 128GB; EXPO/overclocking support (up to 8600+ MT/s depending on CPU and kit).
• Storage: 2 x M.2 (M.2_1 supports PCIe Gen5 x4 on supported CPUs; M.2_2 PCIe Gen4 x4), plus 2 x SATA 6Gb/s (available when ROG FPS Card is installed).
• Expansion & I/O: 1 x PCIe x16 SafeSlot (PCIe 5.0 where supported); 2 x USB4 (40 Gbps Type‑C), multiple USB 10Gbps ports and front USB Type‑C header.
• Networking & audio: Intel® 2.5Gb Ethernet, 2×2 Wi‑Fi 7 (802.11be) with ASUS WiFi Q‑Antenna, Bluetooth 5.4; ROG Strix Hive II audio with ESS SABRE 9260Q DAC and Dolby Atmos support.
• Accessories & extras: Bundled ROG FPS Card, ROG Strix Hive II, Wi‑Fi Q‑Antenna, SATA cables, M.2 Q‑Latch, pre‑mounted I/O shield and BIOS FlashBack.

Who it suits

This board is aimed at small‑form‑factor builders who want a compact AM5 platform without sacrificing connectivity or high‑frequency memory overclocking. Check CPU and cooler clearances carefully — some features (PCIe/M.2 speeds and display outputs) vary by CPU generation.
