Description
Overview

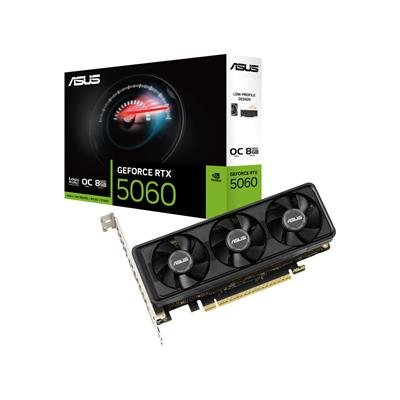

The ASUS GeForce RTX 5060 LP BRK OC Edition is a low‑profile graphics card designed to bring NVIDIA Blackwell‑generation features to compact systems. With 8GB of GDDR7 memory on a 128‑bit bus and factory OC clocks, it targets small‑form‑factor builds that need current RTX features such as hardware ray tracing, DLSS 4 and NVIDIA Studio driver support.
Key features
- 8GB GDDR7 video memory (128‑bit bus, 28 Gbps memory speed)
- Factory OC: 2580 MHz (OC mode) / 2550 MHz (Default boost)
- Display outputs: 2× HDMI 2.1, 1× DisplayPort 2.1a (supports up to 3 displays)
- Low‑profile, 2‑slot design: 175.8 × 69 × 38 mm, suited for slim chassis
- Durability: IP5X dust resistance and dual‑ball fan bearings; Auto‑Extreme automated manufacturing
- Software: ASUS GPU Tweak III for tuning and monitoring
The card uses a single 8‑pin supplementary power connector and ASUS recommends a 550W system PSU as a guideline. It ships with a low‑profile bracket for installation in small cases and includes manufacturer support documentation on the ASUS website.
