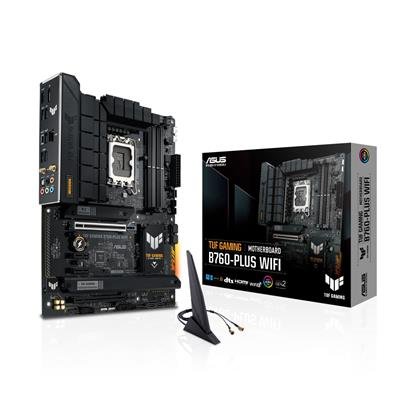

ASUS TUF GAMING B760-PLUS WIFI LGA1700 ATX DDR5

Description

Overview

The ASUS TUF GAMING B760-PLUS WIFI is an ATX motherboard for Intel LGA1700 processors (14th/13th/12th Gen). It targets gamers and creators who want a modern DDR5 platform with solid connectivity — including a PCIe 5.0 x16 slot for current/future GPUs, multiple M.2 slots for fast storage and integrated Wi‑Fi.

Key features

• Socket: Intel LGA1700 with Intel B760 chipset; supports 14th, 13th and 12th Gen Intel Core CPUs.
• Memory: 4 x DDR5 DIMM slots, up to 192GB total; XMP support and high OC memory speeds.
• Expansion: 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 3.0 x16 (x4), 2 x PCIe 3.0 x1.
• Storage: 3 x M.2 (PCIe 4.0 x4 capable) and 4 x SATA 6Gb/s ports; M.2 heatsink included.
• Networking: Onboard 2.5Gb Ethernet (Realtek) plus 2×2 Wi‑Fi 6 and Bluetooth (module/Bluetooth version may vary by region).
• I/O: Rear USB 3.2 Gen 2×2 Type‑C, USB 3.2 Gen 2 Type‑A, multiple USB 3.2 Gen 1 and USB 2.0 ports, DisplayPort and HDMI, optical S/PDIF and 5 analogue audio jacks.
• Build & reliability: TUF protection features (SafeSlot Core+, SafeDIMM, ESD guards), pre‑mounted I/O shield, Q‑Latch and ASUS thermal/VRM cooling design.

Box contents & extras

• Motherboard, 2 x SATA 6Gb/s cables, Wi‑Fi moving antenna, M.2 screw package and rubber packages, TUF sticker, user guide and certification card.

This model is a DDR5 variant of the TUF GAMING B760‑PLUS family. Confirm the memory type before purchasing because ASUS also offers a DDR4 (D4) variant with a similar name. For detailed CPU and memory compatibility, BIOS requirements and installation instructions consult the official ASUS product page and user manual.
