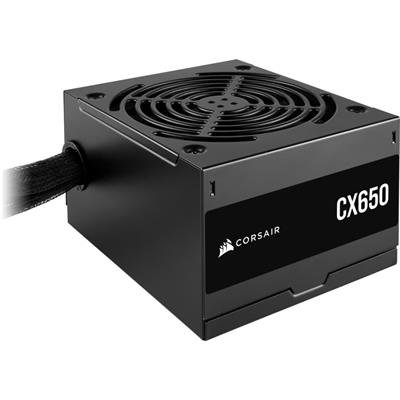

CORSAIR CX650 650W 80 PLUS Bronze ATX Power Supply

Description

Overview

The CORSAIR CX650 is a 650 watt, 80 PLUS Bronze certified ATX power supply designed for mainstream and gaming PCs. It delivers guaranteed continuous power with up to around 88% efficiency at typical loads, a thermally controlled 120mm fan for quiet operation and a compact 125mm length for easy fit in most modern cases. The unit is supplied with flat and sleeved cables and is non‑modular for simple installation.

Who it suits

This PSU is suitable for users building a budget to mid‑range gaming PC or upgrading a desktop where a reliable 650W continuous supply and basic efficiency are required. It supports single‑GPU systems and common CPU configurations while offering a five‑year manufacturer warranty.

Key features

• 650W continuous output, 80 PLUS Bronze efficiency.
• 120mm thermally controlled low‑noise fan.
• Compact 125mm chassis length for easier installation.
• Flat and sleeved cables with standard connector set; non‑modular design.
• Five‑year warranty and 100,000 hour MTBF rating.

Connector set (summary)

• 1 × 24‑pin ATX (600mm)
• 1 × EPS/ATX12V 8‑pin (4+4) (600mm)
• 2 × PCIe 8‑pin (6+2) (total 2 connectors)
• 3 × SATA on one cable (flat) and 2 × PATA (on a separate cable)
