Description
Overview

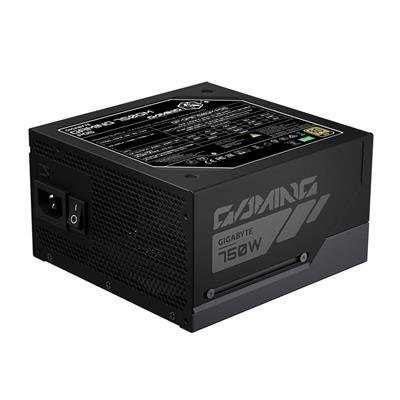

The GIGABYTE GAMING 750GM PG5 is a compact, fully modular 750W power supply built to ATX 12V v3.1 and PCIe Gen‑5 requirements. It combines an 80 PLUS Gold efficiency rating with modern GPU safety features and a short 150 × 150 × 86mm chassis that fits most mid‑tower cases.
Key features
- 750W total output, single +12V rail design for high‑draw graphics cards.
- 80 PLUS Gold efficiency (typical ~90% efficiency). Verified 80PLUS documentation available for the PG5 family.
- ATX 12V v3.1 / PCIe Gen‑5 (PG5) compatibility with a 16‑pin (12VHPWR) GPU connector plus 4 × 6+2 PCIe connectors.
- T‑Guard active GPU protection with a dual‑colour 12V‑2×6 cable design to help detect abnormal heat on the GPU power line.
- 135mm fluid dynamic bearing (FDB) fan with HybridCool smart control for low noise and long MTBF (>100,000 hours).
- Fully modular embossed cables (all‑black) and a compact 150mm length to ease installation.
- Comprehensive protection suite: OVP, OPP, SCP, UVP, OCP, OTP, NLO and SIP.
- Regional warranty and support terms apply (Gigabyte lists a 10‑year warranty for the PG5 Gaming series in many regions; check local terms).
Connectors & dimensions
- ATX 20+4 pin ×1 (approx. 610mm).
- CPU/EPS 4+4 pin ×2 (approx. 600mm).
- PCI‑e 16‑pin (12VHPWR) ×1 plus PCI‑e 6+2‑pin ×4.
- SATA ×8 and 4‑pin Molex ×4 (cable lengths per manufacturer).
- Dimensions: 150 × 150 × 86 mm; fan: 135 mm FDB.
Who is this for?
This PSU suits mainstream and enthusiast gaming builds that need ATX 3.1 / PCIe Gen‑5 compatibility in a compact PSU package — for example systems using modern high‑end GPUs which may use the 16‑pin 12VHPWR connector. It is also appropriate where a fully modular cable layout and 80 PLUS Gold efficiency are required. Always verify connector requirements for your chosen GPU and check regional warranty coverage before purchase.
