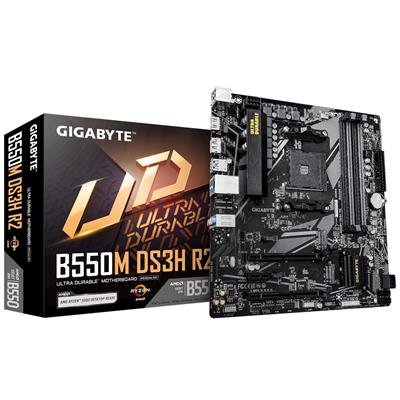

GIGABYTE B550M-DS3H R2 AM4 mATX Motherboard

Description

Overview

The GIGABYTE B550M‑DS3H R2 is a compact micro‑ATX motherboard for AMD Socket AM4, designed for builders who want PCIe 4.0 capability in a small form factor. It supports AMD Ryzen™ 5000 / 4000 / 3000 series processors and uses a 5+3 digital VRM design with VRM Thermal Armor for stable power delivery.

Storage & expansion

The board provides two M.2 connectors (one PCIe 4.0 x4, one PCIe 3.0), plus four SATA 6 Gb/s ports. Expansion includes a PCIe 4.0 x16 graphics slot (PCIe UD Slot) plus a secondary PCIe 3.0 x16 (running x4) and a PCIe 3.0 x1 slot, giving flexible options for GPUs, NVMe storage and add‑in cards.

Connectivity & cooling

• Onboard video outputs: HDMI 2.1 and DisplayPort (display output available with Ryzen APUs).
• Networking: Realtek Gigabit Ethernet.
• USB: multiple USB 3.2 and USB 2.0 ports and headers.
• Cooling: Smart Fan 6 with a total of three PWM/DC fan headers and dual fan curve modes.
• Lighting: 3 × RGB LED headers and 2 × addressable ARGB headers for external lighting control.

Extras

Features such as PCIe EZ‑Latch for easier GPU installation, Q‑Flash Plus for BIOS flashing without CPU/DRAM, Solid Pin power connectors and high‑end audio capacitors are included. The board is suitable for budget to mid‑range builds that require modern storage and PCIe 4.0 graphics support in an mATX layout.
