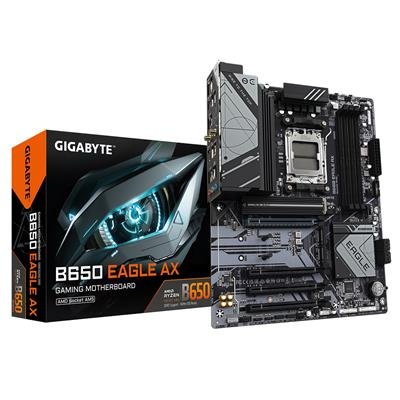

GIGABYTE B650 EAGLE AX AM5 ATX Motherboard (DDR5, Wi‑Fi 6E)

Description

Overview

The GIGABYTE B650 EAGLE AX is an ATX AM5 motherboard built around the AMD B650 chipset. It targets mainstream gamers and desktop builders who want DDR5 memory, integrated Wi‑Fi 6E and multiple NVMe storage options in a full‑size ATX board. The board provides a balanced feature set for Ryzen 7000, 8000 and 9000 series processors (check Gigabyte’s CPU support list for exact compatibility and required BIOS versions).

Key features

• Socket AM5 with AMD B650 chipset — supports Ryzen 7000 / 8000 / 9000 series processors (see manufacturer CPU support list).
• Memory: 4 × DDR5 DIMM slots, up to 256 GB, with support for AMD EXPO and XMP profiles and high OC memory speeds.
• Storage: 3 × M.2 Socket 3 connectors (various CPU/chipset lane configurations) plus 4 × SATA 6Gb/s ports; RAID 0/1/10 support.
• Expansion: Primary PCIe x16 slot from CPU (PCIe 4.0 x16 per Gigabyte spec), additional PCIe x1 slots from CPU/chipset.
• Connectivity: Onboard Wi‑Fi 6E and Bluetooth 5.3 (module depends on PCB revision), Realtek Gigabit Ethernet (1 Gbps), USB Type‑C on back panel and internal header.
• Video outputs: DisplayPort 1.4 and HDMI 2.1 (useful when using CPUs with integrated Radeon graphics).
• Form factor: ATX (305 × 244 mm) with Q‑Flash Plus and support for GIGABYTE Control Center.

This description is based on GIGABYTE’s official product specifications and user manual. Confirm BIOS version and CPU compatibility on Gigabyte’s support pages before upgrading or pairing with the latest AM5 processors.
