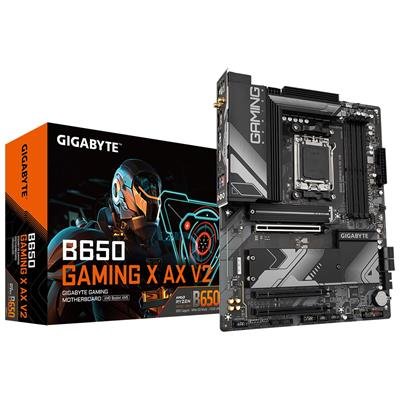

GIGABYTE B650 GAMING X AX V2 ATX AM5 Motherboard (DDR5, Wi‑Fi 6E, 2.5GbE)

Description

Overview

The GIGABYTE B650 GAMING X AX V2 is an ATX AM5 motherboard designed for modern Ryzen desktops. It pairs the B650 chipset with support for DDR5 memory, multiple NVMe M.2 slots and integrated networking — making it suitable for gaming and mainstream high‑performance builds.

CPU and memory support may vary by BIOS and CPU generation; check GIGABYTE’s CPU and memory support lists before purchase.

Key features

• AMD B650 chipset for Socket AM5; compatible with Ryzen 7000/8000/9000 series processors (refer to the CPU support list).
• DDR5 memory: 4 DIMM slots, up to 256 GB, support for speeds up to 8000 MT/s (OC) and AMD EXPO / Intel XMP profiles.
• Storage: 3 x M.2 Socket 3 connectors (various CPU/chipset lane assignments) and 4 x SATA 6Gb/s ports.
• Networking: Realtek 2.5GbE LAN and onboard Wi‑Fi 6E / Bluetooth (module depends on PCB revision).
• Rear I/O highlights: USB Type‑C (USB 3.2 Gen2), USB 3.2 Gen2 Type‑A, DisplayPort 1.4, HDMI 2.1 and PS/2; Q‑Flash Plus button and SMA antenna connectors.

The board is a 30.5cm x 24.4cm ATX form factor and includes headers for RGB/addressable LEDs, multiple fan and pump headers, front-panel USB Type‑C (USB 3.2 Gen2x2 via internal header) and TPM header support. Confirm the PCB revision if a specific wireless chipset or Bluetooth version is required.
