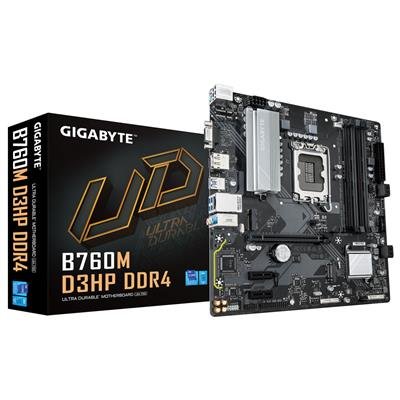

GIGABYTE B760M D3HP DDR4 LGA1700 Micro-ATX Motherboard

Description

Overview

The GIGABYTE B760M D3HP DDR4 is a micro-ATX motherboard for Intel LGA1700 CPUs (12th, 13th and 14th Gen). It uses the Intel B760 chipset and is designed for compact, value-oriented systems that require DDR4 memory and modern connectivity such as PCIe 4.0 M.2 storage and HDMI/DisplayPort outputs.

Key features

• Socket LGA1700 — supports 12th/13th/14th Gen Intel Core, Pentium Gold and Celeron processors.
• Memory — 4 x DDR4 DIMM slots, dual-channel, up to 128 GB and support for XMP and OC memory profiles.
• Storage — 2 x M.2 Socket 3 (both support PCIe 4.0 x4/x2) and 4 x SATA 6Gb/s connectors with RAID 0/1/5/10 support.
• Expansion & I/O — 1 x PCIe 4.0 x16 slot, two PCIe 3.0 x1 slots, HDMI & DisplayPort, D-Sub and multiple USB 3.2 Gen1 / USB 2.0 ports.
• Networking & audio — Realtek Gigabit Ethernet and Realtek HD audio codec with S/PDIF Out.

Who it’s for

Choose the B760M D3HP DDR4 if you want a compact LGA1700 motherboard that keeps DDR4 memory to lower platform cost while still offering modern storage (dual PCIe 4.0 M.2) and display outputs for integrated graphics. It’s a good fit for everyday desktop, home office or budget gaming builds.
