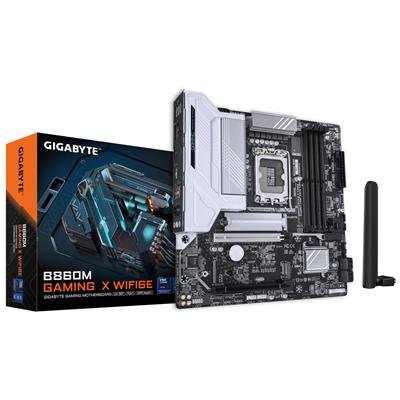

GIGABYTE B860M GAMING X WIFI6E LGA1851 Micro‑ATX Motherboard

Description

Overview

The GIGABYTE B860M GAMING X WIFI6E is a Micro‑ATX motherboard built for Intel LGA1851 (Intel Core Ultra Series 2) platforms. It combines next‑generation connectivity — including USB4 Type‑C (40 Gbps) and Wi‑Fi 6E — with a compact board layout, two M.2 slots (one PCIe 5.0 x4) and a robust hybrid VRM for stable performance in small gaming or content‑creation systems.

Key features

• Intel® B860 chipset for LGA1851 / Intel Core Ultra (Series 2) CPUs.
• 4 × DDR5 DIMM slots (dual‑channel) with support for up to 256 GB and high OC memory frequencies (up to 9200 MT/s listed by the manufacturer).
• Expansion and storage: 1 × PCIe 5.0 x16 slot, 1 × PCIe 4.0 x4 slot; 2 × M.2 slots (1 × PCIe 5.0 x4, 1 × PCIe 4.0 x4) and 4 × SATA 6 Gb/s ports.
• High‑speed I/O: native USB4 Type‑C (40 Gbps) with DisplayPort Alt Mode, multiple USB3.2 Gen1 and USB2.0 ports, plus a front USB‑C 10 Gb/s header.
• Networking and audio: Wi‑Fi 6E (802.11ax) with Bluetooth, 2.5 GbE LAN and 8‑channel HD audio with high‑end capacitors.
• DIY friendly: integrated I/O shield, Q‑Flash Plus, EZ‑Latch designs and EZ‑Debug LEDs for easier builds.

Refer to the manufacturer’s product page and the user manual for full technical details, supported CPU/memory lists and the latest BIOS updates before installation.
