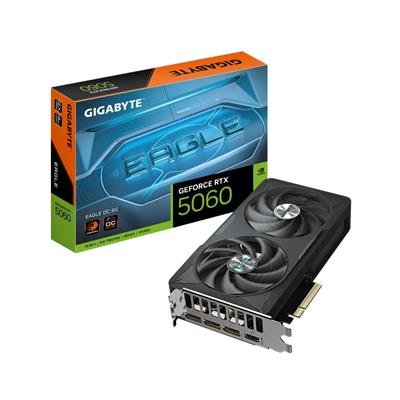

GIGABYTE GeForce RTX 5060 EAGLE OC 8GB GDDR7

Description

Overview

The GIGABYTE GeForce RTX 5060 EAGLE OC 8GB (GV-N5060EAGLE OC-8GD) is a factory‑overclocked member of GIGABYTE’s EAGLE family. Built on NVIDIA’s Blackwell architecture, it combines 3,840 CUDA cores with 8GB of high‑speed GDDR7 memory (28 Gbps effective, 128‑bit bus) to deliver modern GPU features including real‑time ray tracing, AI‑accelerated workflows and support for NVIDIA DLSS 4.

Key features

• GPU: NVIDIA GeForce RTX 5060 (Blackwell architecture); boost clock 2550 MHz (reference 2497 MHz).
• Memory: 8 GB GDDR7, 28 Gbps, 128‑bit memory interface.
• Compute: 3,840 CUDA cores.
• Interface: PCIe 5.0; card size L208 x W120 x H40 mm; dual‑slot, 2 slot width.
• Display outputs: DisplayPort 2.1b ×3 and HDMI 2.1b ×1; maximum digital resolution 7680×4320; up to 4 displays.
• Power: single 8‑pin power connector; GIGABYTE recommends a 550W PSU (some retailers list a 450W minimum).
• Compatibility: DirectX 12 API, OpenGL 4.6. Includes quick guide; manufacturer warranty applies.
