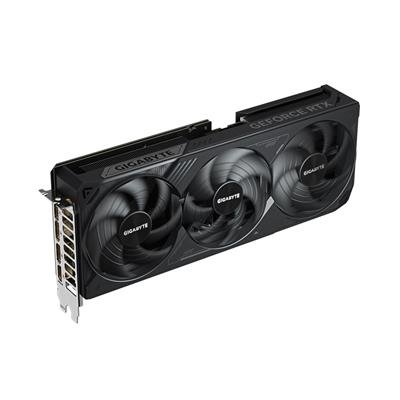

GIGABYTE GeForce RTX 5080 WINDFORCE SFF 16GB (GV-N5080WF3-16GD)

Description

Overview

The GIGABYTE GeForce RTX 5080 WINDFORCE SFF 16GB (GV-N5080WF3-16GD) is a compact, triple‑fan RTX 5080 graphics card aimed at small‑form‑factor gaming and creator PCs. It pairs NVIDIA’s RTX 5080 GPU with 16GB of GDDR7 memory on a 256‑bit bus and uses GIGABYTE’s WINDFORCE cooling tuned for shorter chassis.

Key features

• NVIDIA GeForce RTX 5080 GPU with 10,752 CUDA cores and 2617 MHz core clock (manufacturer spec).
• 16GB GDDR7 memory, 30 Gbps effective memory clock, 256‑bit bus.
• Compact SFF card size: L304 × W126 × H50 mm; triple‑fan WINDFORCE cooler.
• Outputs: DisplayPort 2.1b ×3, HDMI 2.1b ×1 — supports up to 7680×4320 resolution.
• PCI Express 5.0 interface; single 16‑pin power connector; recommended PSU 850W.

This model is the standard WINDFORCE SFF variant; GIGABYTE also offers OC and alternative region variants (for example GV-N5080WF3OC-16GD) — check the MPN to confirm the exact SKU. The card ships with a 12V‑to‑3×8‑pin adapter and VGA/holder accessories as listed by the manufacturer.
