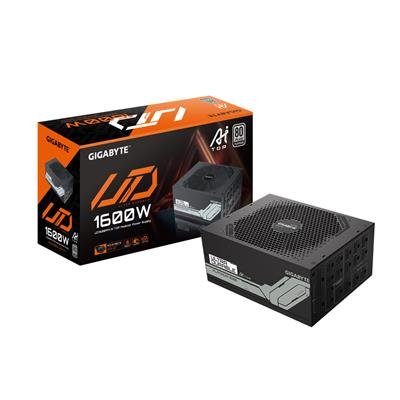

GIGABYTE UD1600PM PG5 AI TOP 1600W 80 PLUS Platinum Fully‑Modular PSU

Description

Overview

The GIGABYTE UD1600PM PG5 AI TOP is a 1600W ATX 12V v3.1 power supply designed for high-performance desktops, multi‑GPU workstations and AI training rigs. It is 80 PLUS Platinum certified and built to support the latest PCIe Gen5 (native 16‑pin) graphics cards while providing robust protections and a long service life.

Key features

• 1600W continuous output, ATX 12V v3.1 compliant — suitable for multi‑GPU and heavy compute systems.
• 80 PLUS Platinum efficiency (typical 92% at mid load) to reduce wasted power and heat.
• Native PCIe 16‑pin (12VHPWR) support and multi‑GPU capability: two native 16‑pin outputs plus additional 16‑to‑8 pin and 6+2 pin connectors to support up to four PCIe Gen5 GPUs.
• Server‑grade components including main Japanese capacitors and an enlarged heatsink; 140mm smart double ball‑bearing fan with semi‑passive behaviour to reduce noise at low load.
• Fully modular flat cables to reduce clutter and improve chassis airflow.
• Comprehensive protection suite: OVP, OPP, SCP, UVP, OCP and OTP.
• 10‑year manufacturer warranty (subject to regional adjustments and terms).

Connector & mechanical summary

• Typical cable set (manufacturer pinout): 1× ATX 20+4, 2× CPU 4+4, 2× PCI‑E 16‑pin (native), 2× PCI‑E 16‑to‑8 pin, 4× PCI‑E 6+2 cables (providing 8× 6+2 connectors), 16× SATA, peripheral connectors and floppy adaptors. See manufacturer pinout for exact cable lengths.
• Dimensions: 150 × 190 × 86 mm (standard length and footprint for high‑wattage ATX units).

Who this suits

Choose the UD1600PM PG5 AI TOP for high‑end builds that require sustained, efficient power for multiple modern GPUs (PCIe Gen5), intensive AI training or heavy workstation loads where ATX 3.1 compatibility, high excursion handling and a long warranty are important. Verify connector needs for very high single‑GPU draws (follow GPU and PSU manufacturer guidance for 16‑pin/OC jumper requirements).
