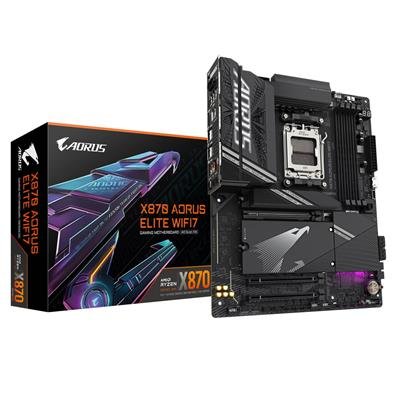

GIGABYTE X870 AORUS ELITE WIFI7 (AM5, ATX)

Description

Overview

The GIGABYTE X870 AORUS ELITE WIFI7 is a full‑size ATX motherboard for AMD Socket AM5 processors. Designed for gaming and content creation, it combines modern I/O — including USB4 and dual USB‑C ports — with multiple NVMe M.2 slots and PCIe lanes that support PCIe 5.0 where the CPU provides the interface. The board supports up to 256GB of DDR5 memory and offers integrated Wi‑Fi 7 and 2.5Gb Ethernet for fast network connectivity.

Key features

• Socket AM5 supporting AMD Ryzen 7000/8000/9000 series CPUs (see Gigabyte CPU support list for compatibility).
• AMD X870 chipset on an ATX board (30.5 x 24.4 cm).
• 4 x DDR5 DIMM sockets, up to 256GB, with EXPO and XMP support and high OC memory speeds supported.
• Multiple M.2 connectors including CPU-integrated M.2 slots with PCIe 5.0 support on compatible CPUs.
• Rear I/O including 2 x USB4 Type‑C ports (supporting DisplayPort), USB 3.2 Gen2 Type‑A, USB 3.2 Gen1 and USB 2.0 ports.
• Realtek 2.5GbE LAN plus Realtek Wi‑Fi 7 (RTL8922AE) and Bluetooth 5.4 for wireless networking.
• High‑definition audio via Realtek ALC1220 codec and support for up to 7.1 channels.
• GIGABYTE utilities and firmware features (Q‑Flash, Q‑Flash Plus, GIGABYTE Control Center).

Compatibility & notes

• Wi‑Fi 7 features require Windows 11 SV3 and 6 GHz channel availability depends on local regulations; check drivers and OS requirements before use.
• PCIe 5.0 and some M.2 behaviours depend on the installed CPU model — consult the manufacturer’s CPU and memory support lists for exact configurations and limitations.
• Warranty periods and local support policies vary by region and retailer; confirm warranty with your supplier or GIGABYTE support.
