Description
Overview

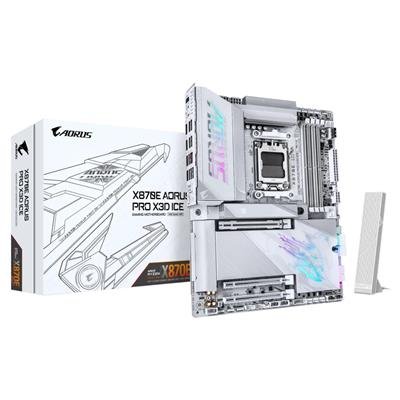

The GIGABYTE X870E AORUS PRO X3D ICE is an AM5 ATX motherboard built around the AMD X870E chipset. Targeted at high‑end desktop builds that use Ryzen X3D and other AM5 processors, the board combines a balanced VRM design with modern I/O — including PCIe 5.0 support for CPU M.2 devices, USB4 connectivity and Wi‑Fi 7 — in a white aesthetic.
Key features
- AMD Socket AM5 with X870E chipset; supports Ryzen 9000 / 8000 / 7000 series processors (see GIGABYTE CPU support list for exact compatibility and required BIOS revisions).
- Memory: 4 × DDR5 DIMM slots, up to 256 GB, support for AMD EXPO and XMP; speeds up to DDR5‑9000(O.C.).
- Storage: 4 × M.2 slots (two CPU‑linked, two chipset‑linked) and 4 × SATA 6Gb/s ports; CPU M.2 slots support PCIe 5.0 NVMe when used with supported processors.
- Expansion: Primary PCIe x16 (CPU) with PCIe 5.0 x16 capability on supported CPUs; additional chipset PCIe x16/x4/x2 lanes for other devices.
- Networking: Realtek 5GbE LAN and Qualcomm Wi‑Fi 7 (QCNCM865) with Bluetooth 5.4.
- Rear I/O: Dual USB4 Type‑C ports (with DisplayPort alt mode), multiple USB 3.2 ports and HDMI output; audio by Realtek ALC1220.
Who it’s for
This board is suitable for builders who want AM5 platform performance with modern connectivity — such as enthusiasts using Ryzen X3D processors, prosumers needing fast NVMe storage and anyone wanting Wi‑Fi 7 and USB4 on the motherboard. Check GIGABYTE’s CPU support list and release notes for BIOS requirements before installing very new processors.
