Description
Overview

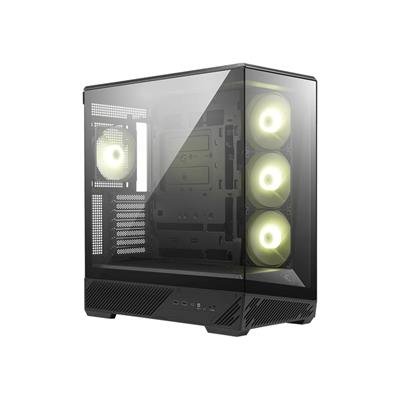

The MSI MAG PANO 130R PZ (Black) is a mid‑tower PC case designed for gaming and custom builds that need strong cooling and component clearance. It comes with multiple preinstalled ARGB fans and a large side window to show off components while supporting long GPUs and multiple radiator layouts.
Key features
- Supports ATX, Micro‑ATX and Mini‑ITX motherboards; back‑connect ATX support for neater cable routing.
- Preinstalled fans: 1 x 120 mm ARGB rear fan and 3 x 120 mm ARGB reverse‑blade side fans for display‑orientated airflow.
- GPU clearance up to 400 mm and CPU cooler height up to 165 mm; PSU length up to 180 mm.
- Radiator support: top 120/140/240/280/360 mm and side 120/240/360 mm (rear 120 mm).
- Drive support: up to three 2.5” SSDs and up to two 3.5” HDDs (maximum of three drives mounted at once, depending on configuration).
- Front I/O: 2 x USB 5 Gbps Type‑A, 1 x USB 20 Gbps Type‑C, audio in/out, power and reset.
- Magnetic top and removable bottom dust filters and a rotatable PCIe bracket for horizontal or vertical GPU mounting.
Dimensions & weight
External dimensions are 460 x 232 x 490 mm (D x W x H). Net weight is listed as 8.37 kg. The case accepts ATX power supplies and provides seven expansion slots.
Reviews
There are no reviews yet.
