MSI MAG PANO M100R PZ White Micro-ATX Tower Case

Description

Overview

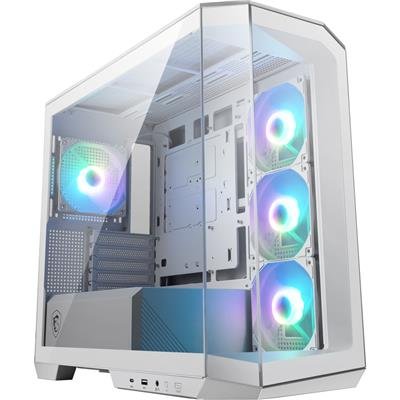

The MSI MAG PANO M100R PZ (White) is a compact Micro‑ATX showcase chassis built for ARGB display builds. It uses a 270‑degree panoramic tempered‑glass enclosure and reverse‑blade side fans so components and lighting are visible without obstructive frames. The case supports back‑connect Micro‑ATX and Mini‑ITX motherboards and includes an integrated ARGB‑PWM control board to manage lighting and fan speeds.

Key features

• 270° panoramic tempered‑glass side for a clear internal view.
• Preinstalled ARGB reverse‑blade fans (side) plus one rear ARGB fan and a 1→4 ARGB‑PWM control board with an Insta‑Light Loop button.
• Front I/O with USB 3.2 Gen2x2 Type‑C (20 Gbps) and USB 3.2 Gen1 Type‑A, plus audio and LED switch.
• Supports back‑connect Micro‑ATX (and Mini‑ITX) motherboards to simplify cable routing and builds.
• Cooling support includes up to 10×120 mm fan positions and up to 360 mm radiator at the top.

Technical highlights

• Internal dimensions and clearances suitable for GPUs up to 390 mm (horizontal), CPU coolers up to 175 mm and PSUs up to 200 mm.
• Drive layout supports 1×2.5″ and 1×2.5″/3.5″ combo (configurable as either 2×2.5″ or 1×2.5″+1×3.5″).
• Compact footprint — manufacturer spec dimensions 440 × 235 × 405 mm (H×W×D) and net weight about 8.66 kg.
• Designed for tidy cable routing (33 mm routing space) and includes a GPU support stand with magnetic base.

For official technical drawings, exact local warranty and up‑to‑date compatibility notes consult the MSI product page and the manufacturer datasheet listed in the sources below.
