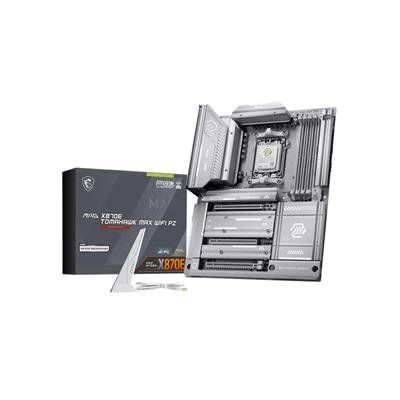

MSI MAG X870E TOMAHAWK MAX WIFI PZ

Description

Overview

The MSI MAG X870E TOMAHAWK MAX WIFI PZ is an ATX motherboard built for AMD Socket AM5 CPUs (Ryzen 7000/8000/9000 series). It combines a robust Duet‑Rail power delivery design and MSI’s memory and OC technologies with modern connectivity — including PCIe 5.0, multiple Gen5 M.2 slots, Wi‑Fi 7 and 5G LAN — to support demanding gaming and content‑creation systems.

Key features

• Socket AM5 and AMD X870E chipset — supports Ryzen 9000 / 8000 / 7000 desktop processors.
• Memory: 4× DDR5 UDIMM slots, up to 256GB, DDR5‑8400+ MT/s (OC) and AMD EXPO support.
• Expansion and storage: 3× PCIe x16 slots (primary PCIe 5.0 x16), 4× M.2 slots (2× Gen5 x4 from CPU, 2× Gen4 x4 from chipset) and 4× SATA 6Gb/s ports.
• Networking: onboard Wi‑Fi 7 module (pre‑installed in M.2 Key‑E) and Realtek 5G LAN for high bandwidth and low latency.
• I/O and extras: USB4/40Gbps Type‑C, multiple high‑speed USB ports, Realtek ALC4080 audio, back‑connect design for improved cable management.

Note: Some display outputs, PCIe and M.2 lane speeds depend on the installed CPU; consult MSI’s specification and the CPU documentation for exact behaviour.
