Overview

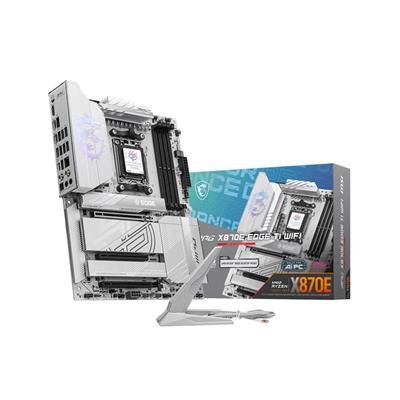

The MSI MPG X870E EDGE TI WIFI is an AM5 ATX motherboard built around the AMD X870E chipset. It’s designed for modern AMD desktop processors and offers a feature set focused on high bandwidth and connectivity: DDR5 memory support, PCIe 5.0 for the primary GPU slot, multiple M.2 NVMe slots (including PCIe Gen5-capable sockets), USB4/40Gbps Type‑C ports and an integrated Wi‑Fi 7 wireless module. The board uses a silver‑white aesthetic typical of the EDGE TI series and includes enhanced thermal solutions for power delivery and M.2 storage.
Key platform behaviour (CPU, memory and some I/O bandwidth) can vary by CPU model and BIOS version; consult MSI support for the latest compatibility lists and BIOS downloads before building.
Main features
- Socket/Chipset: AM5 socket with AMD X870E chipset.
- CPU support: AMD Ryzen 9000 / 8000 / 7000 series desktop processors (verify specific CPU support on MSI’s compatibility lists).
- Memory: 4× DDR5 UDIMM slots, dual‑channel, up to 256GB and support for DDR5-8400+ (OC) / 5600–4800 (JEDEC).
- Graphics & display: HDMI 2.1 FRL (up to 8K60 where supported by CPU iGPU) and USB‑C DisplayPort outputs (requires processors with integrated graphics).
- Expansion: PCIe 5.0 x16 primary slot (from CPU) plus additional PCIe slots from chipset.
- Storage: Four M.2 slots (two M.2 Gen5 x4 sourced from CPU on supported processors, two M.2 Gen4 x4 from chipset) and four SATA 6Gb/s ports.
- Connectivity: 5Gbps LAN, Wi‑Fi 7 module (pre‑installed in Key‑E M.2 slot), Bluetooth 5.4 and multiple USB 40/20/10/5Gbps ports including USB4/40Gbps Type‑C.
- Audio: Realtek ALC4080 codec with MSI Audio Boost implementation (7.1 channel, S/PDIF out).
For detailed technical behaviour such as M.2/USB4 bandwidth sharing, RAID support differences by CPU family and the official memory QVL, use the MSI product specification and datasheet. These sources are authoritative for latest BIOS updates, regional Wi‑Fi band availability and exact box contents.
