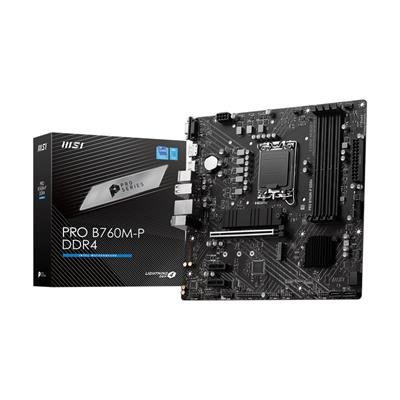

MSI PRO B760M-P DDR4 LGA1700 Micro-ATX Motherboard

Description

Overview

The MSI PRO B760M-P DDR4 is a Micro‑ATX (243.84 x 243.84 mm) motherboard built for Intel LGA1700 processors (12th, 13th and 14th Gen, plus compatible Pentium Gold and Celeron models). It uses the Intel B760 chipset and supports four DDR4 DIMMs up to 128GB (with XMP support and a range of OC profiles), making it a compact, cost‑effective choice for office, home‑office and mainstream gaming systems. ([us.msi.com](https://us.msi.com/Motherboard/PRO-B760M-P-DDR4/Specification))

Key features

• Socket: LGA 1700; Chipset: Intel B760. ([us.msi.com](https://us.msi.com/Motherboard/PRO-B760M-P-DDR4/Specification))
• Memory: 4 × DDR4 DIMM slots, up to 128GB; official support for DDR4 up to DDR4‑4800 (OC) and JEDEC speeds down to 2133MHz. ([us.msi.com](https://us.msi.com/Motherboard/PRO-B760M-P-DDR4/Specification))
• Expansion: 1 × PCIe 4.0 x16 (from CPU) and 2 × PCIe x1 slots. ([us.msi.com](https://us.msi.com/Motherboard/PRO-B760M-P-DDR4/Specification))
• Storage: 2 × M.2 slots (M.2_1: PCIe 4.0 x4 from CPU; M.2_2: PCIe 4.0 x4 or SATA from chipset) plus 4 × SATA 6Gb/s ports. ([us.msi.com](https://us.msi.com/Motherboard/PRO-B760M-P-DDR4/Specification))
• Rear I/O: HDMI 1.4, DisplayPort 1.4, VGA, USB 3.2 Gen2 Type‑C (10Gbps), USB 3.2 Gen1 Type‑A and multiple USB 2.0 ports. ([us.msi.com](https://us.msi.com/Motherboard/PRO-B760M-P-DDR4/Specification))
• Networking & audio: Realtek Gigabit LAN (RTL8111H) and Realtek ALC897 7.1 audio codec. ([us.msi.com](https://us.msi.com/Motherboard/PRO-B760M-P-DDR4/Specification))

Who it’s for

This board is aimed at builders who want a modern LGA1700 platform but prefer to retain DDR4 memory for cost or reuse reasons. Its Micro‑ATX size keeps chassis options broad while offering PCIe 4.0 storage and a useful rear Type‑C port for contemporary peripherals. For best compatibility check CPU integrated‑graphics requirements if you intend to use the board’s display outputs. ([us.msi.com](https://us.msi.com/Motherboard/PRO-B760M-P-DDR4/Specification))
