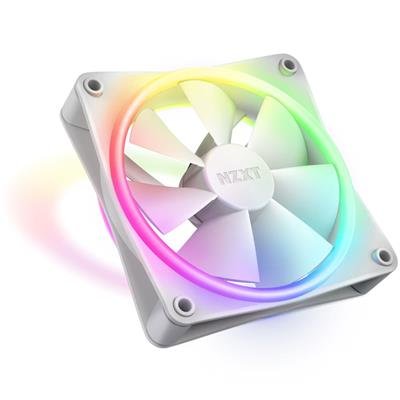

NZXT F120 RGB Duo 120mm PWM Case Fan (White)

Description

Overview

The NZXT F120 RGB Duo is a 120 × 120 × 25 mm PWM case fan that combines dual‑sided addressable RGB lighting with a high static‑pressure blade profile and fluid dynamic bearing for long life and quiet operation. It is intended for use as intake, exhaust or on radiators where strong airflow and visible lighting are desirable.

Key features

• Dual‑sided lighting: 20 individually addressable RGB LEDs for visible colour from both sides.
• PWM speed control: 500–1,800 ±300 rpm for automatic fan‑curve control from the motherboard or controller.
• High static pressure and optimised blade shape — suitable for radiators and dense meshes.
• Fluid Dynamic Bearing (FDB) and rubber dampeners to reduce vibration and extend fan life.
• Single fan pack includes fan and installation accessories; NZXT RGB controller is provided only with certain multi‑fan packs or sold separately.

Technical specifications

• Dimensions: 120 × 120 × 25 mm.
• Rated voltage / current: 12 V DC, 0.13 A (1.56 W).
• Speed: 500–1,800 ±300 RPM.
• Airflow: ~50 CFM (per NZXT tech specs).
• Static pressure: ~2.60 mm‑H₂O (per NZXT tech specs).
• Noise: ~31 dBA (per NZXT tech specs).
• Bearing: Fluid Dynamic Bearing (FDB).
• LEDs: 20 individually addressable RGB LEDs.
• Connector: 4‑pin PWM fan power connector; RGB requires NZXT controller/hub for full CAM control.
• Rated life: 60,000 hours.

For full lighting customisation and fan management use the NZXT RGB controller or an NZXT control hub and NZXT CAM software. Single fan packs do not necessarily include the RGB controller — if you need centralised RGB control for multiple fans, choose a multi‑fan kit that includes the controller or purchase NZXT’s controller separately.
