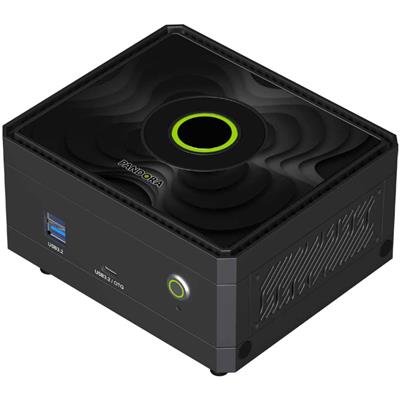

PALIT Pandora Jetson Orin NX Super 16GB – Edge AI System

Description

Overview

The PALIT Pandora Jetson Orin NX Super 16GB is a compact edge AI computer pre‑integrated with the NVIDIA Jetson Orin™ NX 16GB Super system‑on‑module. It is designed for on‑device AI inference, computer vision and robotics where performance, I/O flexibility and a small footprint are required.

Key features

• NVIDIA Jetson Orin NX 16GB Super module (A002FV1P1) with an 8‑core Arm Cortex‑A78AE CPU and a 1024‑core NVIDIA Ampere GPU.
• AI performance up to 157 TOPS (sparse) / 78 TOPS (dense).
• 16GB 128‑bit LPDDR5 system memory (102.4 GB/s bandwidth).
• Compact system size: 145 × 123 × 66 mm; weight approx. 470 g.
• Extensive I/O: 2×RJ45 Gigabit Ethernet, 2×USB3.2 Gen2 Type‑A, 1×USB3.2 Gen2 Type‑C (OTG), 2×USB2.0 Type‑A, 1×HDMI 2.0, audio in/out, 8‑lane MIPI CSI‑2 for camera input.
• Storage and expansion: Pre‑installed M.2 2280 (PCIe Gen4×2) 128GB SSD and additional M.2 slots (PCIe Gen4×4, Gen4×1 + USB2.0, B‑Key for 4G/5G modules).
• Power: DC input 12–36 V; supports multiple power/performance modes (including MAXN_SUPER).
• Development: JetPack 6.2 or higher; Ubuntu 22.04 / L4T support.

This board is aimed at engineers and integrators building vision systems, robotics, smart cameras and other AI edge appliances that need a maintained software stack (JetPack) and a variety of peripheral connections. The unit ships as a retail system (MPN A002FV1P1, EAN 4710562245165) with a two‑year warranty from the distributor.
