Description
Overview

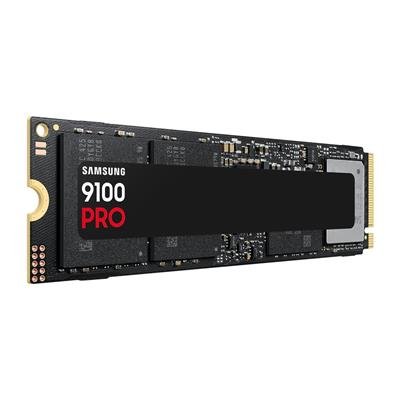

The Samsung 9100 PRO 2TB (model MZ‑VAP2T0BW) is a high‑performance M.2 2280 NVMe SSD that uses a PCIe® 5.0 x4 interface and Samsung’s in‑house controller with V‑NAND TLC. It is designed for desktops, workstations and other systems with a PCIe 5.0‑capable M.2 slot and offers very high sequential and random I/O suitable for video editing, large file transfers and demanding applications.
Key features
- Capacity: 2TB (user capacity ≈ 2,000 GB*).
- Interface: PCIe® 5.0 x4, NVMe™ 2.0 (M.2 2280).
- Sequential performance (up to): Read 14,700 MB/s, Write 13,400 MB/s (manufacturer figures).
- Random performance (4KB, QD256): Read up to ~1,850K IOPS, Write up to ~2,600K IOPS.
- Cache: 2 GB LPDDR4X (on the 2TB model).
- NAND: Samsung V‑NAND TLC.
- Endurance / TBW: 1,200 TBW (2TB model) and limited 5‑year warranty (or TBW limit, whichever comes first).
- Model code: MZ‑VAP2T0BW (non‑heatsink retail version). A separate ‘CW’ suffix denotes the with‑heatsink variant.
Compatibility and notes
- To reach the published peak speeds you need a motherboard/slot running PCIe 5.0 x4; older PCIe slots will limit maximum throughput.
- The drive is available in both bare M.2 (BW suffix) and heatsink (CW suffix) versions — choose the heatsink model if your system has limited airflow or you expect sustained heavy writes.
- Manufacturer performance figures are ‘up to’ values and will vary with system configuration, firmware and workload.
