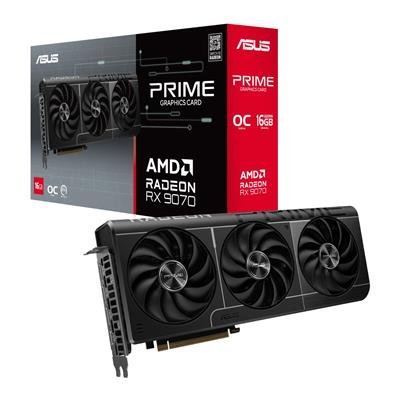

ASUS Prime Radeon RX 9070 OC Edition 16GB GDDR6

Description

Overview

The ASUS Prime Radeon RX 9070 OC Edition is a factory‑overclocked implementation of AMD’s RX 9070 GPU in a compact 2.5‑slot design. It pairs 16GB of GDDR6 memory with a 256‑bit memory bus and a triple Axial‑tech fan array for balanced cooling and acoustics in mid‑to‑high performance desktop builds.

Key features

• GPU: AMD Radeon RX 9070 with 3,584 stream processors.
• Memory: 16GB GDDR6, 20 Gbps memory speed, 256‑bit interface.
• Engine clocks: OC mode up to 2610 MHz (Boost) / 2140 MHz (Game); Default up to 2590 MHz (Boost) / 2120 MHz (Game).
• Display outputs: 1× HDMI 2.1b and 3× DisplayPort 2.1a (up to 4 displays supported).
• Cooling & reliability: triple Axial‑tech fans, phase‑change GPU thermal pad, vented backplate and Dual Ball Fan Bearings.
• Power & compatibility: PCI Express 5.0 interface, requires 2× 8‑pin power connectors; ASUS recommends a 650W PSU.

Dimensions & what’s in the box

Dimensions: 312 × 130 × 50 mm (12.3 × 5.1 × 2.0 in). Slot width: 2.5 slots. Box contents typically include a quick start guide and a thank‑you card — confirm with supplier for region‑specific bundles or accessories.
