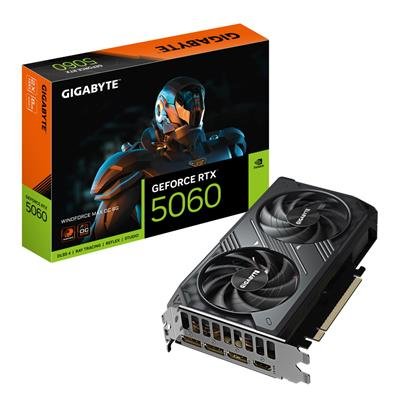

GIGABYTE GeForce RTX 5060 WINDFORCE MAX OC 8GB

Description

Overview

The GIGABYTE GeForce RTX 5060 WINDFORCE MAX OC 8GB (GV-N5060WF2MAX OC-8GD) is a factory-overclocked RTX 5060 card that pairs NVIDIA’s GeForce RTX 5060 GPU with 8GB of GDDR7 memory on a 128-bit bus. It’s built for mainstream gaming and creative workflows where a compact card and modern display/connectivity support are important.

Key features

• GPU: NVIDIA GeForce RTX 5060 (3840 CUDA cores).
• Core clock: 2512 MHz (factory OC; reference 2497 MHz).
• Memory: 8 GB GDDR7, 28 Gbps effective, 128-bit bus.
• Interface: PCI Express 5.0 x16.
• Displays: DisplayPort 2.1b ×3 and HDMI 2.1b ×1 (max digital resolution 7680×4320).
• Power: Single 8‑pin PCIe power connector; Gigabyte recommends a 550W PSU.
• Card size: L199 × W116 × H40 mm — compact dual‑fan/2‑slot design.

This model uses GIGABYTE’s WINDFORCE cooling design and ships with a quick start guide. It supports NVIDIA platform features such as DLSS 4 and other GeForce RTX capabilities (driver/OS support required). Check case clearance and your power supply’s available connectors before installation.
