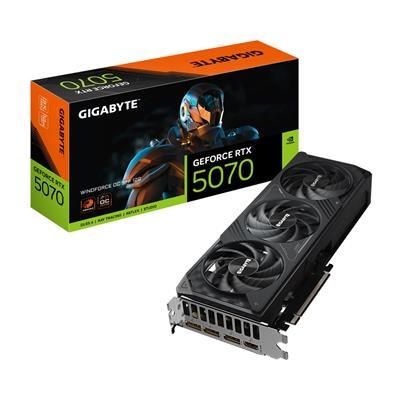

GIGABYTE GeForce RTX 5070 WINDFORCE OC 12GB (GV-N5070WF3OC-12GD)

Description

Overview

The GIGABYTE GeForce RTX 5070 WINDFORCE OC 12GB (GV-N5070WF3OC-12GD) is a factory-overclocked, small form‑factor (SFF) variant of NVIDIA’s RTX 5070. It suits 1440p gaming and content-creation workflows that benefit from dedicated ray tracing and AI features. The card uses GIGABYTE’s WINDFORCE cooling design while keeping a relatively short PCB for tighter builds.

Key features

• GPU: NVIDIA GeForce RTX 5070 — 6,144 CUDA cores (manufacturer specification).
• Memory: 12GB GDDR7 on a 192‑bit bus; 28 Gbps effective memory rate.
• Core clock: 2,542 MHz (OC card; reference 2,512 MHz).
• Display outputs: DisplayPort 2.1b ×3 and HDMI 2.1b ×1 (supports up to 7680×4320).
• Interface & power: PCI‑Express 5.0; single 16‑pin power connector (adapter included); recommended PSU 750 W.
• Compact dimensions: L 282 × W 110 × H 50 mm — suitable for many SFF/compact ATX builds.
• Accessories included: quick guide and a 12V-to-2×6 pin to 2×PCIe 8‑pin adapter (per manufacturer).

All specifications and measurements are taken from the manufacturer product specification and datasheet. Performance will vary with system configuration and driver/software updates; check Gigabyte’s product support page for the latest firmware and drivers.
